AAT2856 - High Current Charge Pump

AAT2856 Description

AAT2856 High Current Charge Pump with Dual LDO for BacklightApplications General .
The AAT2856 is a highly integrated charge pump with dual linear regulators optimized for systems powered from lithium-ion/polymer batteries.

AAT2856 Features

* ChargePump™
* Input Voltage Range: 2.7V to 5.5V Tri-Mode Charge Pump:
* Drives up to Six Backlight LEDs
* 32 Programmable Backlight Current Settings Ranging from 115µA to 30mA
* 2MHz Switching Frequency T

📥 Download Datasheet

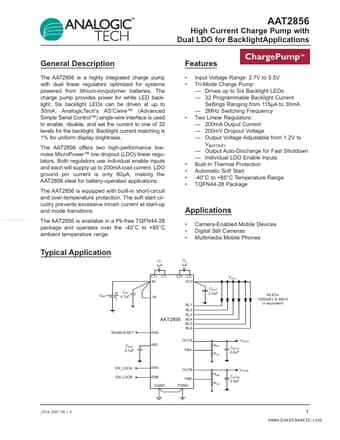

Preview of AAT2856 PDF
