AAT3132 - High Efficiency 1.5X Fractional Charge Pump

AAT

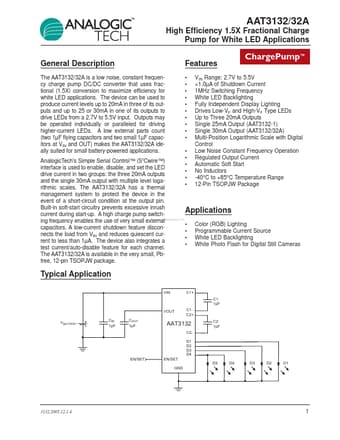

AAT3132 Datasheet Preview — Preview of AAT3132 PDF

Datasheet Details

Part number	AAT3132
Manufacturer	AAT
File Size	246.09 KB
Description	High Efficiency 1.5X Fractional Charge Pump
Datasheet	AAT3132_AAT.pdf

AAT3132 Product details

Description

The AAT3132/32A is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to maximize efficiency for white LED applications.

Features

ChargePump™ AnalogicTech's Simple Serial Control™ (S2Cwire™) interface is used to enable, disable, and set the LED drive current in two groups: the three 20mA outputs and the single 30mA output with multiple level logarithmic scales. The AAT3132/32A has a thermal management system to protect the device in the event of a short-circuit co.
