5SNA0800N330100 Datasheet - ABB

5SNA0800N330100 - IGBT Module

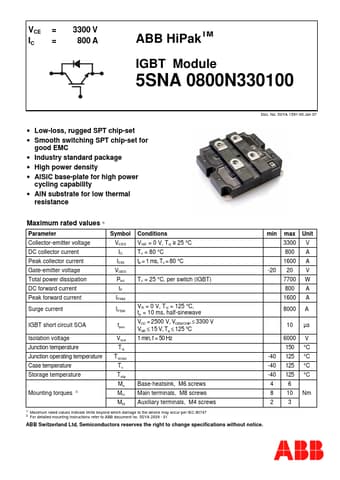

VCE = IC = 3300 V 800 A ABB HiPakTM IGBT Module 5SNA 0800N330100 Low-loss, rugged SPT chip-set Smooth switching SPT chip-set for good EMC Industry standard package High power density AlSiC base-plate for high power cycling capability AlN substrate for low thermal resistance Doc.

No.

5SYA 1591-00 Jan 07 Maximum rated values 1) Parameter Symbol Conditions min Collector-emitter voltage VCES VGE = 0 V, Tvj ≥ 25 °C DC collector cu

5SNA0800N330100-ABB.pdf

Preview of 5SNA0800N330100 PDF
5SNA0800N330100 Datasheet Preview Page 2 5SNA0800N330100 Datasheet Preview Page 3

Datasheet Details

Part number:

5SNA0800N330100

Manufacturer:

ABB

File Size:

316.44 KB

Description:

Igbt module.
