DCS800 DC Drive Technical catalogue

ABB DCS800 DC Drive DCS800 20 A to 5200 A Technical catalogue PRODUCTS Type code Type code: DCS800 - S01 - 0680 - 04 - + B055 DC Drives Product family S800 = DCS800 converter Type S0 = 3-phase converter module R0 = Rebuild kit A0 = Enclosed converter E0 = Panel mounted converter Bridge type 1 = single (2-Q) 2 = anti-parallel (4-Q) Rated DC current 0680 = e.g. 680 A DC (IP00) Rated AC voltage 04 = 230400 V AC 05 = 230525 V AC 06 = 270600 V AC 07 = 315690 V AC 08 = 360800 V AC 10 = 450990 V AC.

DCS800 Features

* Feature Note The drive meet the requirement of all demanding drive application like:

* testrig

* mine hoist

* rolling mill as well as none motoric applications like: electrolysis

* magnetics

* battery charger Embedded software functions offer the upgrades

DCS800 Datasheet (1.59 MB)

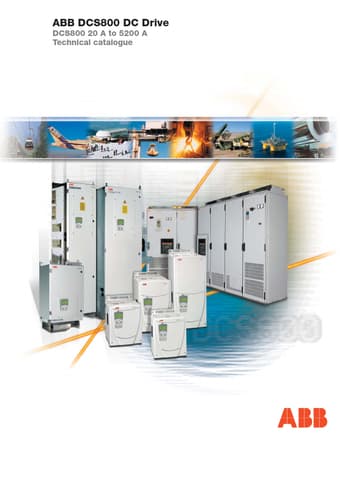

DCS800 Datasheet Preview — Preview of DCS800 PDF

Datasheet Details

Part number:

DCS800

Manufacturer:

ABB

File Size:

1.59 MB

Description:

Dc drive technical catalogue.
