S-25C128AxxH - SPI SERIAL E2PROM

ABLIC

📥 Download Datasheet

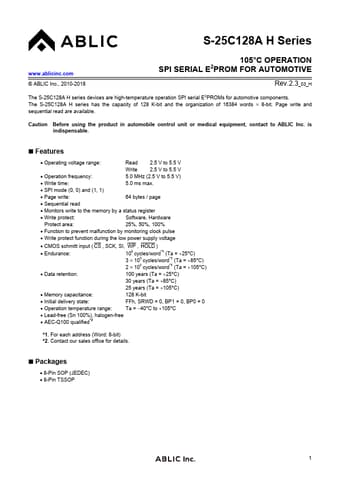

S-25C128AxxH Datasheet Preview — Preview of S-25C128AxxH PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-25C128AxxH
Manufacturer	ABLIC
File Size	404.45 KB
Description	SPI SERIAL E2PROM
Datasheet	S-25C128AxxH-ABLIC.pdf

S-25C128AxxH Product details

Features

Operating voltage range: Read Write 2.5 V to 5.5 V 2.5 V to 5.5 V.
Operation frequency: 5.0 MHz (2.5 V to 5.5 V).
Write time: 5.0 ms max.
SPI mode (0, 0) and (1, 1).
Page write: 64 bytes / page.
Sequential read.
Monitors write to the memory by a status register.
Write protect: Software, Hardware Protect area: 25%, 50%, 100%.
Function to prevent malfunction by monitoring clock pulse.
Write.
