S-25C160AxxH SPI SERIAL E2PROM

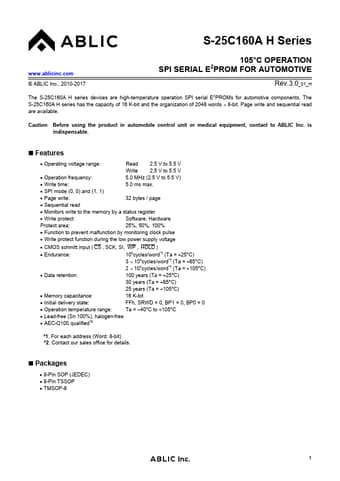

S-25C160A H Series www.ablicinc.com © ABLIC Inc., 2010-2017 105°C OPERATION SPI SERIAL E2PROM FOR AUTOMOTIVE Rev.3.0_01_H The S-25C160A H series devices are high-temperature operation SPI serial E2PROMs for automotive components. The S-25C160A H series has the capacity of 16 K-bit and the organization of 2048 words  8-bit. Page write and sequential read are available. Caution Before using the product in automobile control unit or medical equipment, contact to ABLIC Inc. is indispensable. <.

S-25C160AxxH Features

* Operating voltage range: Read Write 2.5 V to 5.5 V 2.5 V to 5.5 V

* Operation frequency: 5.0 MHz (2.5 V to 5.5 V)

* Write time: 5.0 ms max.

* SPI mode (0, 0) and (1, 1)

* Page write: 32 bytes / page

* Sequential read

* Monitors write to the memory by a statu

S-25C160AxxH-ABLIC.pdf

S-25C160AxxH Datasheet Preview — Preview of S-25C160AxxH PDF

Datasheet Details

Part number:

S-25C160AxxH

Manufacturer:

ABLIC

File Size:

478.61 KB

Description:

Spi serial e2prom.
