S-8821 BOOST CHARGE PUMP DC-DC CONVERTER

Voltage input pin Charge-pump pump capacitor connection pin (positive pin) Charge-pump pump capacitor connection pin (negative pin) Shutdown pin High level (H): normal operation (boost) Low level (L) : boost halt (all circuit halt) GND pin Voltage output pin Figure 2 SNT-8A Top view 1 8 2 7 3.

S-8821 Series www.ablic.com © ABLIC Inc., 2002-2021 VOLTAGE REGULATION BOOST CHARGE PUMP DC-DC CONVERTER Rev.5.2_00 The S-8821 series is a CMOS boost charge pump DC-DC converter with a voltage regulation function. The S-8821 series consists of an oscillation circuit, a controller, a reference voltage circuit, an error amplifier circuit, and an output switching transistor, and can regulate the output voltage by PFM control. Since small ceramic capacitors can be used for the pump capacitor, inp.

S-8821 Features

* PFM control CMOS boost charge pump

* Power supply voltage:

* Output voltage:

* Output voltage accuracy:

* Built-in soft start circuit:

* Output current

* Oscillation frequency:

* ON/OFF function:

* Lead-free, Sn 100%, halogen-

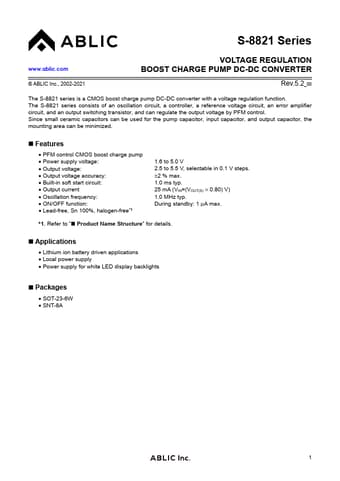

S-8821 Datasheet (418.34 KB)

S-8821 Datasheet Preview — Preview of S-8821 PDF

Datasheet Details

Part number:

S-8821

Manufacturer:

ABLIC

File Size:

418.34 KB

Description:

Boost charge pump dc-dc converter.
