S-882Z - ULTRA-LOW VOLTAGE OPERATION CHARGE PUMP

Seiko Instruments

📥 Download Datasheet

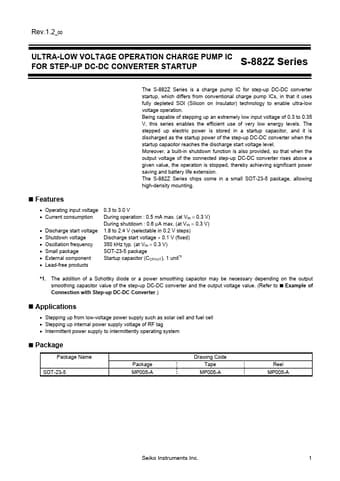

S-882Z Datasheet Preview — Preview of S-882Z PDF

Datasheet Details

Part number	S-882Z
Manufacturer	Seiko Instruments
File Size	640.49 KB
Description	ULTRA-LOW VOLTAGE OPERATION CHARGE PUMP
Datasheet	S-882Z_SeikoInstruments.pdf

S-882Z Product details

Description

Output pin (step-up DC-DC converter connection pin) GND pin Step-up DC-DC converter output voltage monitor pin Power supply input pin Startup capacitor connection pin 1 2 3 Figure 2 Absolute Maximum Ratings Table 3 Parameter VIN pin voltage CPOUT pin voltage OUT pin voltage VM pin voltage Power dissipation Symbol VIN VCPOUT VOUT VVM PD Operating ambient temperature Topr Storage temperature Tstg 1.

Features

s.
Operating input voltage.
Current consumption.
Discharge start voltage Shutdown voltage Oscillation frequency Small package External component Lead-free products 0.3 to 3.0 V During operation : 0.5 mA max. (at VIN = 0.3 V) During shutdown : 0.6 µA max. (at VIN = 0.3 V) 1.8 to 2.4 V (selectable in 0.2 V steps) Discharge start voltage + 0.1 V (fixed) 350 kHz typ. (at VIN = 0.3 V) SOT-23-5 package Startup capacitor (CCPO.
