S-UM5587 - 16-CHANNEL PROGRAMMABLE 3-LEVEL ULTRASOUND TRANSMIT BEAMFORMER

S-UM5587 www.ablic.com © ABLIC Inc., 2021-2023 16-CHANNEL PROGRAMMABLE 3-LEVEL ULTRASOUND TRANSMIT BEAMFORMER Rev.1.1_01 S-UM5587 is a 16-channel programmable 3-level high-voltage ultrasound transmit beam-former.

The S-UM5587 comprises control logic, waveform memory, delay calculator, level translators, gate drive buffers with floating voltage regulators, high-voltage, high-current MOSFETs, and active T/R switches.

Functions 16-channel programmable 3-level transmit beam-forme

S-UM5587 Features

* 0 to ±100 V output voltage

* ±2 A source and sink current with 4-mode current control for the high-voltage pulses

* ±1 A source and sink peak current for active ground clamp

* 250 Ω active ground clamp without blocking diode for anti-leakage

* 20 MHz output

S-UM5587-ABLIC.pdf

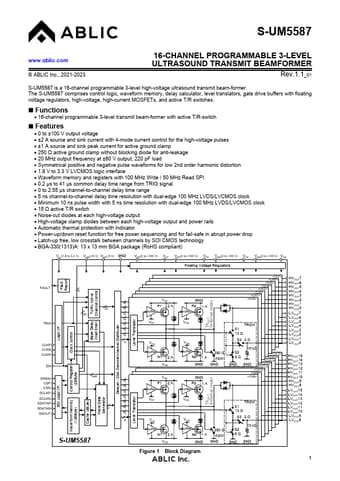

Preview of S-UM5587 PDF
