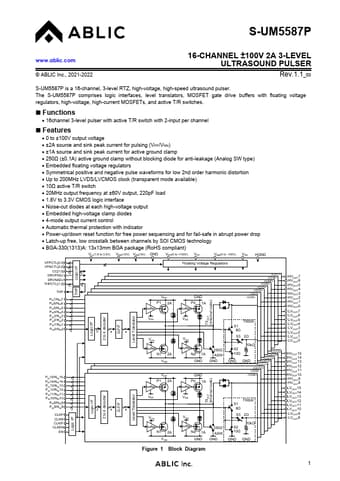

S-UM5587P 2A 3-LEVEL ULTRASOUND PULSER

S-UM5587P Features

* 0 to ±100V output voltage

* ±2A source and sink peak current for pulsing (VPP/VNN)

* ±1A source and sink peak current for active ground clamp

* 250Ω (±0.1A) active ground clamp without blocking diode for anti-leakage (Analog SW type)

* Embedded floating

Datasheet Details

S-UM5587P

ABLIC

1.03 MB

2a 3-level ultrasound pulser.
