S-UM6522E HIGH-VOLTAGE ANALOG SWITCHES

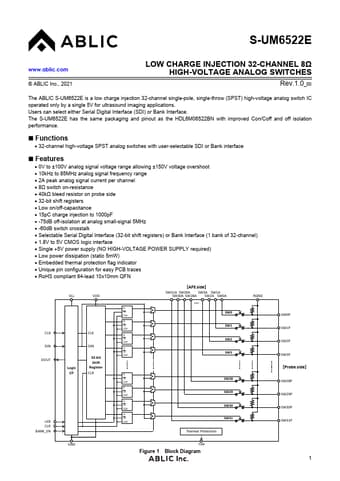

S-UM6522E www.ablic.com © ABLIC Inc., 2021 LOW CHARGE INJECTION 32-CHANNEL 8Ω HIGH-VOLTAGE ANALOG SWITCHES Rev.1.0_00 The ABLIC S-UM6522E is a low charge injection 32-channel single-pole, single-throw (SPST) high-voltage analog switch IC operated only by a single 5V for ultrasound imaging applications. Users can select either Serial Digital Interface (SDI) or Bank Interface. The S-UM6522E has the same packaging and pinout as the HDL6M06522BN with improved Con/Coff and off isolation performanc.

S-UM6522E Features

* 0V to ±100V analog signal voltage range allowing ±150V voltage overshoot

* 10kHz to 85MHz analog signal frequency range

* 2A peak analog signal current per channel

* 8Ω switch on-resistance

* 40kΩ bleed resistor on probe side

* 32-bit shift registers

S-UM6522E Datasheet (852.94 KB)

S-UM6522E Datasheet Preview — Preview of S-UM6522E PDF

Datasheet Details

Part number:

S-UM6522E

Manufacturer:

ABLIC

File Size:

852.94 KB

Description:

High-voltage analog switches.
