ACE25C200G

2M BIT SPI NOR FLASH

ACE25C200G Features

* Serial Peripheral Interface (SPI) - Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD - Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD - Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3

* Read - Normal Read (Serial): 50MHz clock rate - Fast Read (Serial): 108MHz clock rate - Dual/Quad (Multi-I/O) Read: 108MHz

ACE25C200G General Description

The ACE25C200G is 2M-bit Serial Peripheral Interface(SPI) Flash memory, and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (/WP), and I/O3 (/HOLD). The Dual I/O data is transferred with speed of 216Mbits/s and the Quad I/O & Quad output data is transfer.

ACE25C200G Datasheet (1.07 MB)

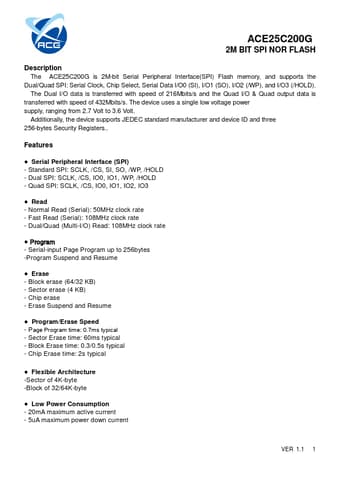

Preview of ACE25C200G PDF

Datasheet Details

Part number:

ACE25C200G

Manufacturer:

ACE Technology

File Size:

1.07 MB

Description:

2m bit spi nor flash.
