ACE303

High-precision Low Voltage Detector

ACE303 Features

* High-precision detection Voltage:±3%

* Detection Voltage:0.9V~6.0V (in 0.1V steps)

* Precise hysteresis:4% typ.

* Operating Voltage range:0.7V~10V

* Ultra-low current consumption:500nA typ. (at VDD=3.0V) Application

* Power monitor for portable equipment such as PDA, DSC,

ACE303 General Description

ACE303 is a series of high precision voltage detector with ultra low current consumption (500nA typ. at Vdd=3.0V). It can work at very low voltage, which makes it perfect for system reset. ACE303 is composed of high precision voltage reference, comparator, output driver and resistor array. Internall.

ACE303 Datasheet (588.56 KB)

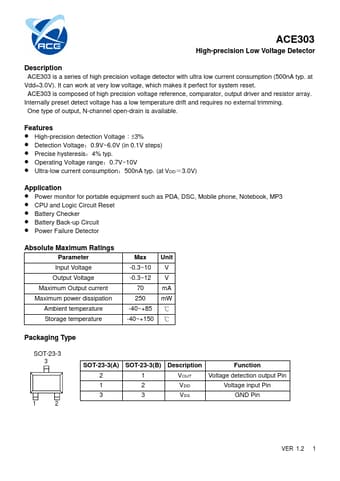

Preview of ACE303 PDF

Datasheet Details

Part number:

ACE303

Manufacturer:

ACE Technology

File Size:

588.56 KB

Description:

High-precision low voltage detector.
