ACE345 Datasheet, Switch, ACE Technology

ACE345 Features

  • Switch include thermal shutdown and constant current output characteristics if current exceed its current limit Features
  • 2.5 to 5.5V input voltage range
  • Controlled turn-on

PDF File Details

Part number:

ACE345

Manufacturer:

ACE Technology

File Size:

740.12kb

Download:

📄 Datasheet

Description:

Adjustable usb load current switch. The ACE345 is Adjustable USB Load Current Switch Current Limited designed for high-side load switching applications. The internal cur

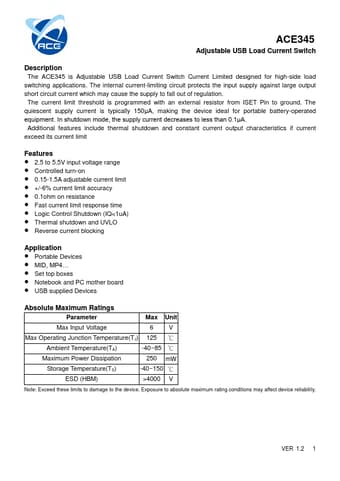

Datasheet Preview: ACE345 📥 Download PDF (740.12kb)
Page 2 of ACE345 Page 3 of ACE345

ACE345 Application

  • Applications The internal current-limiting circuit protects the input supply against large output short circuit current which may cause the supply
