ACE93C46 Datasheet - ACE Technology

Three-wire Serial EEPROM

ACE93C46 Features

* Low-voltage operation

* 1.8 (VCC=1.8 to 5.5V)

* Three-wire serial Interface

* 2MHz clock rate(5V) compatibility

* Self-timed write cycle (5 ms max)

* High-reliability

* Endurance: 1 Million write cycles Data retention: 100 Years Packaging Type DIP-8 SOP-8 TS

ACE93C46 General Description

The ACE93C46 provides 1024 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 64 words of 16 bits each, when the ORG pin is connected to VCC and 128 words of 8 bits each when it is tied to ground. The ACE93C46 is available in space-saving 8-lead PDIP, 8-lead TSS.

ACE93C46 Datasheet (579.24 KB)

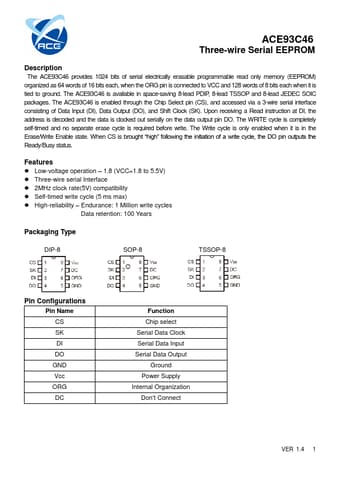

ACE93C46 Datasheet Preview — Preview of ACE93C46 PDF

Datasheet Details

Part number:

ACE93C46

Manufacturer:

ACE Technology

File Size:

579.24 KB

Description:

Three-wire serial eeprom.
