ACE93C46A - Three-wire Serial EEPROM

ACE93C46A Description

ACE93C46A/56A/66A Three-wire Serial EEPROM .
The ACE93C46A/56A/66A series are 1024/2048/4096 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM.

ACE93C46A Applications

* These devices are available in standard 8-lead DIP, 8-lead JEDEC SOP, 8-lead TSSOP and 8-lead DFN packages. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications. The ACE93C46A/56A/66A is enabled through the Chip Select pin (CS), and accessed via a 3-wire serial interf

📥 Download Datasheet

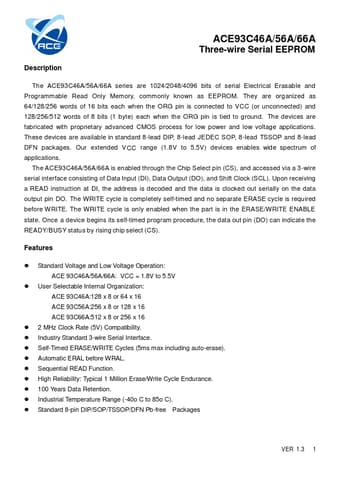

Preview of ACE93C46A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACE93C46A
Manufacturer
ACE Technology
File Size
675.40 KB
Datasheet
ACE93C46A-ACETechnology.pdf
Description
Three-wire Serial EEPROM
