DH25D24W05

DC-DC Converter

DH25D24W05 Features

* ▪ All outputs are regulated ▪ High reliability planar xmer design ▪ Ultra low ripple & noise ▪ No external capacitor required ▪ High power density ▪ High effieiencies to 90% ▪ Fully isolated to 1500Vdc ▪ 1.0” x 2.0” x 0.45” form factor ▪ -55 to +100°C operation available Ordering Guide Model DH25

DH25D24W05 Datasheet (917.39 KB)

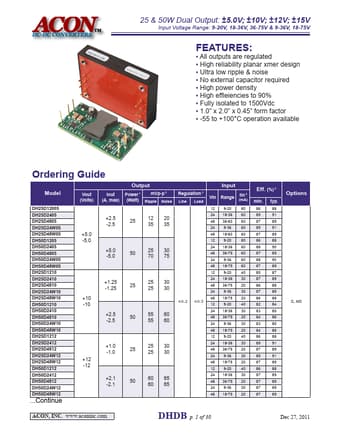

Preview of DH25D24W05 PDF

Datasheet Details

Part number:

DH25D24W05

Manufacturer:

ACON

File Size:

917.39 KB

Description:

Dc-dc converter.
