DP2520-L1524SA

Multilayer Chip Diplexers

DP2520-L1524SA Features

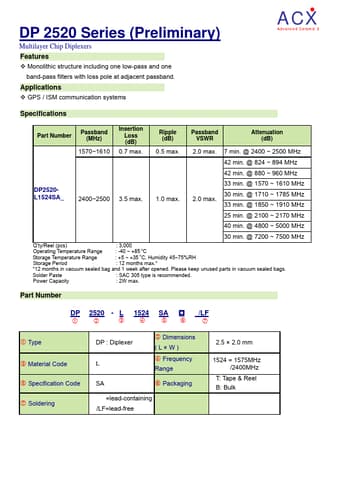

*  Monolithic structure including one low-pass and one band-pass filters with loss pole at adjacent passband. Applications  GPS / ISM communication systems ACX Advanced Ceramic X Specifications Part Number Passband (MHz) 1570~1610 Insertion Loss (dB) 0.7 max. Ripple (dB) 0.5 max. Passband VS

DP2520-L1524SA Datasheet (226.48 KB)

Preview of DP2520-L1524SA PDF

Datasheet Details

Part number:

DP2520-L1524SA

Manufacturer:

ACX

File Size:

226.48 KB

Description:

Multilayer chip diplexers.
