DP2525D - Quasi-Resonant PSR CC/CV PWM Power Switch

Datasheet Summary

Description

DP2525D is a high performance Quasi Resonant (QR) Primary Side Regulation (PSR) PWM power switch with high precision CV/CC control ideal for charger a

Features

  • Low Cost Solution Built-in 800V power BJT.
  • Quasi-Resonant Primary Side Regulation (QR-PSR) Control with High Efficiency.
  • Multi-Mode PSR Control.
  • Fast Dynamic Response.
  • Built-in Dynamic Base Drive.
  • Audio Noise Free Operation.
  • ±4% CC and CV Regulation.
  • Low Standby Power.

📥 Download Datasheet

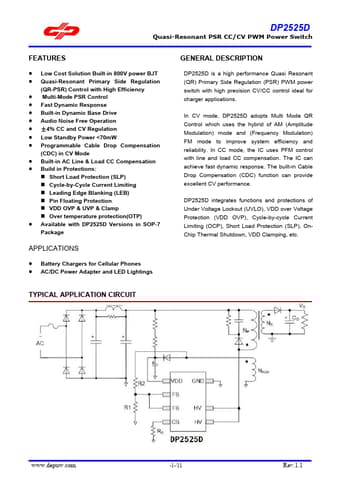

Datasheet preview – DP2525D

Datasheet Details

Part number DP2525D
Manufacturer DEVELOPER MICROELECTRONICS
File Size 1.26 MB
Description Quasi-Resonant PSR CC/CV PWM Power Switch
Datasheet download datasheet DP2525D Datasheet
Additional preview pages of the DP2525D datasheet.
