DP2525A Quasi-Resonant PSR CC/CV PWM Power Switch

DP2525A Description

DP2525A Quasi-Resonant PSR CC/CV PWM Power Switch .
DP2525A is a high performance Quasi Resonant (QR) Primary Side Regulation (PSR) PWM power switch with high precision CV/CC control ideal for charg.

DP2525A Features

* Low Cost Solution Built-in 800V power BJT
* Quasi-Resonant Primary Side Regulation (QR-PSR) Control with High Efficiency
* Multi-Mode PSR Control
* Fast Dynamic Response
* Built-in Dynamic Base Drive
* Audio Noise Free Operation
* ±4% CC and CV Regulation
* Low Stan

DP2525A Applications

* Battery Chargers for Cellular Phones

📥 Download Datasheet

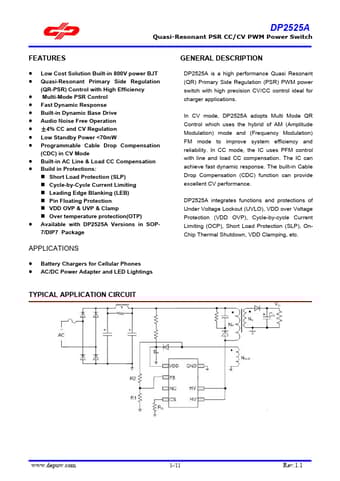

Preview of DP2525A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DP2525A
Manufacturer
DEVELOPER MICROELECTRONICS
File Size
1.28 MB
Datasheet
DP2525A-DEVELOPERMICROELECTRONICS.pdf
Description
Quasi-Resonant PSR CC/CV PWM Power Switch
