AACT210W

AC Thyristor Triac power switch

AACT210W Features

* Repetitive Peak Off-State Voltage: 800Vand1000V

* R.M.S On-State Current ( IT(RMS)= 2A )

* Very high immunity to false turn-on by dV/dt

* Triggering in three quadrants only

* Pin compatible with standard triacs

* Safe clamping capability for low energy over-voltage transients

AACT210W General Description

Available either in through-hole or surface-mount packages, the AACT2 suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation,induction motor starting circuits or for phase control operation in light dimmers,motor sp.

AACT210W Datasheet (253.24 KB)

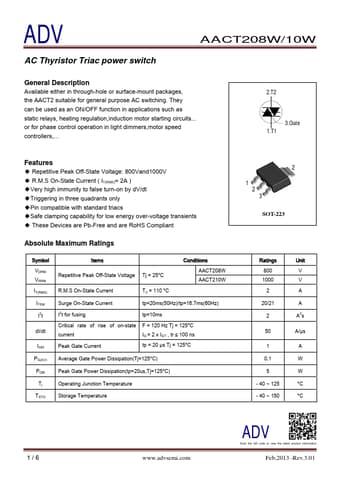

Preview of AACT210W PDF

Datasheet Details

Part number:

AACT210W

Manufacturer:

ADV

File Size:

253.24 KB

Description:

Ac thyristor triac power switch.
