ADS16C60G 3 Quadrants Triacs

ADS16C60G Description

  ADV 3 Quadrants Triacs       ADS16C60G/80G General .
High current density due to mesa technology .

ADS16C60G Features

* Repetitive Peak Off-State Voltage: 600Vand800V
* R. M. S On-State Current ( IT(RMS)=16A )
* High Commutation dv/dt
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj

📥 Download Datasheet

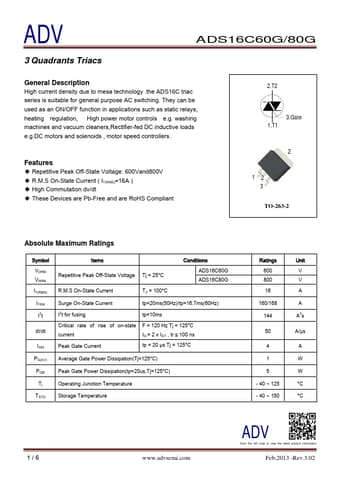

Preview of ADS16C60G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS16C60G
Manufacturer
ADV
File Size
262.88 KB
Datasheet
ADS16C60G-ADV.pdf
Description
3 Quadrants Triacs
