ADS16C80G

3 Quadrants Triacs

ADS16C80G Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)=16A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj

ADS16C80G General Description

High current density due to mesa technology .the ADS16C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

ADS16C80G Datasheet (262.88 KB)

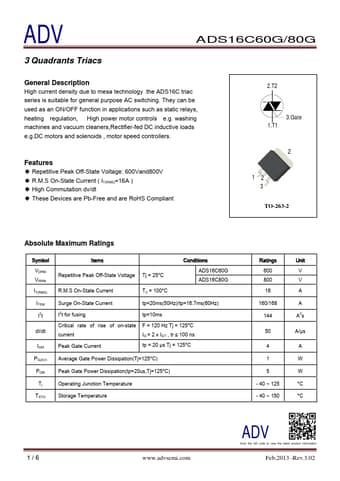

Preview of ADS16C80G PDF

Datasheet Details

Part number:

ADS16C80G

Manufacturer:

ADV

File Size:

262.88 KB

Description:

3 quadrants triacs.
