ADS60C120S - 3 Quadrants Triacs

This page provides the datasheet information for the ADS60C120S, a member of the ADS60C100S 3 Quadrants Triacs family.

Datasheet Summary

Description

High current density due to mesa technology .

the ADS60C triac series is suitable for general purpose AC switching.

Features

  • Repetitive Peak Off-State Voltage: 1000V/1200V/1600V.
  • R. M. S On-State Current ( IT(RMS)= 60A ).
  • High Commutation dv/dt.
  • These Devices are Pb-Free and are RoHS Compliant 1 23 TO-247S Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 75°C Conditions ADS60C100S ADS60C120S ADS60C160S Surge On-State Current tp=20ms(50Hz)/tp=16.7ms(60Hz) I2t for fusing tp=1.

📥 Download Datasheet

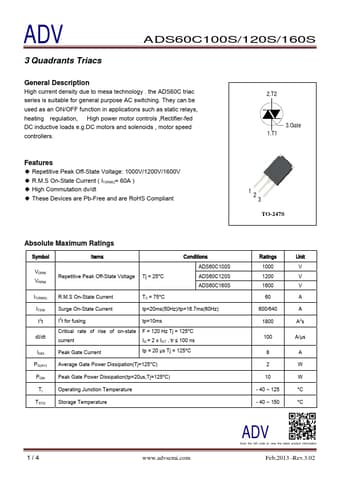

Datasheet preview – ADS60C120S
