BT137 Datasheet - ADV

4 Quadrants Triacs

BT137 Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 8A )

* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 123 TO-220C Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak O

BT137 General Description

High current density due to mesa technology .the BT137 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers. .

BT137 Datasheet (252.83 KB)

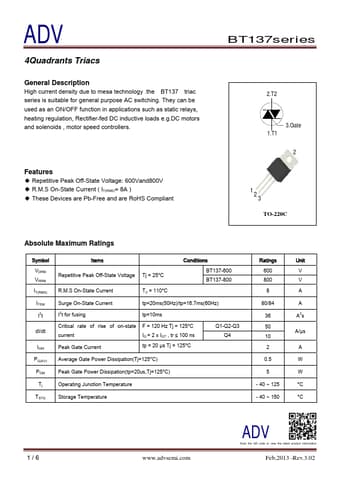

BT137 Datasheet Preview — Preview of BT137 PDF

Datasheet Details

Part number:

BT137

Manufacturer:

ADV

File Size:

252.83 KB

Description:

4 quadrants triacs.
