BT136-800 - 4 Quadrants Triacs

This page provides the datasheet information for the BT136-800, a member of the BT136-600 4 Quadrants Triacs family.

Datasheet Summary

Description

High current density due to mesa technology .the BT136 triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers.

Features

  • Repetitive Peak Off-State Voltage: 600Vand800V.
  • R. M. S On-State Current ( IT(RMS)= 4A ).
  • These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 123 TO-220C Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 110°C Conditions BT136-600 BT136-800 Surge On-State Current tp=20ms(50Hz)/tp=16.7ms(60Hz) I2t for fusing tp=10ms Critical rate of rise of.

📥 Download Datasheet

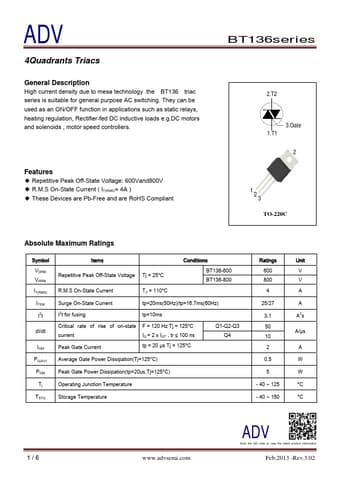

Datasheet preview – BT136-800

Datasheet Details

Part number BT136-800
Manufacturer ADV
File Size 264.24 KB
Description 4 Quadrants Triacs
Datasheet download datasheet BT136-800 Datasheet
Additional preview pages of the BT136-800 datasheet.

📁 Similar Datasheet

Other Datasheets by ADV

Full PDF Text Transcription

Click to expand full text
  ADV                                                                                BT136series 4Quadrants Triacs General Description High current density due to mesa technology .the BT136 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers. Features ◆ Repetitive Peak Off-State Voltage: 600Vand800V ◆ R.M.S On-State Current ( IT(RMS)= 4A ) ◆ These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 2 123 TO-220C Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R.M.
