BT134-800 - 4 Quadrants Triacs

This page provides the datasheet information for the BT134-800, a member of the BT134-600 4 Quadrants Triacs family.

Datasheet Summary

Description

High current density due to mesa technology .

the BT134 triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers.

Features

  • Repetitive Peak Off-State Voltage: 600Vand800V.
  • R. M. S On-State Current ( IT(RMS)= 4A ).
  • These Devices are Pb-Free and are RoHS Compliant 2 321 TO-126 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 110°C Conditions BT134-600 BT134-800 Surge On-State Current tp=20ms(50Hz)/tp=16.7ms(60Hz) I2t for fusing tp=10ms Critical rate of rise of on-state current.

📥 Download Datasheet

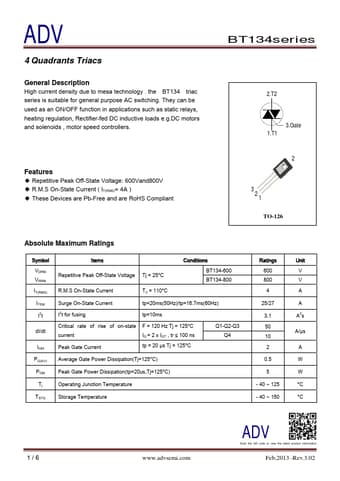

Datasheet preview – BT134-800

Datasheet Details

Part number BT134-800
Manufacturer ADV
File Size 263.70 KB
Description 4 Quadrants Triacs
Datasheet download datasheet BT134-800 Datasheet
Additional preview pages of the BT134-800 datasheet.

📁 Similar Datasheet

Other Datasheets by ADV

Full PDF Text Transcription

Click to expand full text
  A  DV                                                               BT134series 4 Quadrants Triacs General Description High current density due to mesa technology . the BT134 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers. 2.T2 3.Gate 1.T1 Features ◆ Repetitive Peak Off-State Voltage: 600Vand800V ◆ R.M.S On-State Current ( IT(RMS)= 4A ) ◆ These Devices are Pb-Free and are RoHS Compliant 2 321 TO-126 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R.M.
