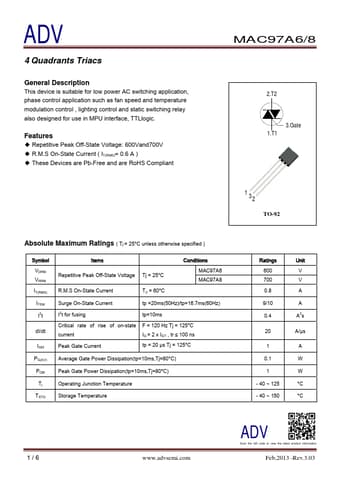

Part number:
MAC97A6
Manufacturer:
ADV
File Size:
245.93 KB
Description:
4 quadrants triacs.
* Repetitive Peak Off-State Voltage: 600Vand700V
* R.M.S On-State Current ( IT(RMS)= 0.6 A )
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 1 32 TO-92 Absolute Maximum Ratings ( Tj = 25°C unless otherwise specified ) Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG
MAC97A6
ADV
245.93 KB
4 quadrants triacs.
