MAC97A8, MAC97A6 4 Quadrants Triacs

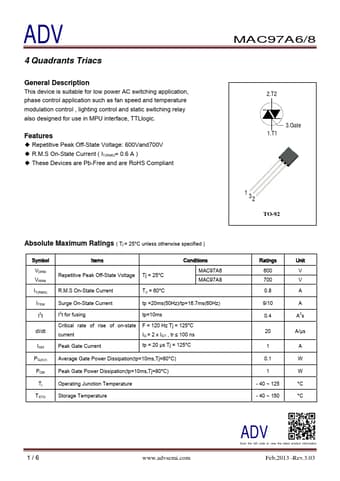

📥 Download Datasheet  Datasheet Preview Page 1

Description

  ADV                                                                                      MAC97A6/8 4 Quadrants Triacs General .
This device is suitable for low power AC switching application, phase control application such as fan speed and temperature modulation control , light.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAC97A8, MAC97A6. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MAC97A8, MAC97A6
Manufacturer
ADV
File Size
245.93 KB
Datasheet
MAC97A6-ADV.pdf
Description
4 Quadrants Triacs
Note
This datasheet PDF includes multiple part numbers: MAC97A8, MAC97A6.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage: 600Vand700V
* R. M. S On-State Current ( IT(RMS)= 0.6 A )
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 1 32 TO-92 Absolute Maximum Ratings ( Tj = 25°C unless otherwise specified ) Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG
