MAC97A8N - 4 Quadrants Triacs

This page provides the datasheet information for the MAC97A8N, a member of the MAC97A6N 4 Quadrants Triacs family.

Datasheet Summary

Description

This device is suitable for low power AC switching application, phase control application such as fan speed and temperature modulation control , lighting control and static switching relay also designed for use in MPU interface, TTLlogic.

Features

  • Repetitive Peak Off-State Voltage: 600Vand700V.
  • R. M. S On-State Current ( IT(RMS)= 0.8 A ).
  • These Devices are Pb-Free and are RoHS Compliant 1 2.T2 3.Gate 1.T1 2 1 3 SOT-23-3L Absolute Maximum Ratings ( Tj = 25°C unless otherwise specified ) Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 60°C Conditions MAC97A6N MAC97A8N Surge On-State Current tp =20ms(50Hz)/tp=16.7ms(60Hz) I2t.

📥 Download Datasheet

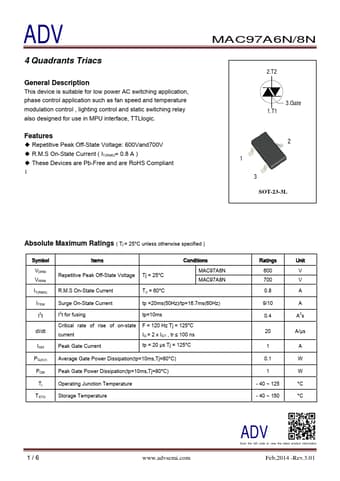

Datasheet preview – MAC97A8N

Datasheet Details

Part number MAC97A8N
Manufacturer ADV
File Size 247.03 KB
Description 4 Quadrants Triacs
Datasheet download datasheet MAC97A8N Datasheet
