MAC97A8 - Sensitive Gate Triacs

Datasheet Summary

Description

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Blocking voltage to 600 V On-state RMS current to 0.6 A SYMBOL VDRM IT RMS ITSM.

HAOPIN MICROELECTRONICS

📥 Download Datasheet

Datasheet Details

Part number	MAC97A8
Manufacturer	HAOPIN MICROELECTRONICS
File Size	440.02 KB
Description	Sensitive Gate Triacs
Datasheet	MAC97A8 Datasheet
Additional preview pages of the MAC97A8 datasheet.

📁 Similar Datasheet

MAC97A8 - 4 Quadrants Triacs (ADV)
MAC97A8 - 0.8A Logic level TRIAC (KCD)
MAC97A8 - 4Q Triac (NXP)
MAC97A8 - 4Q Triac (WeEn)
MAC97A8 - TRIAC (Motorola)
MAC97A8 - Sensitive Gate Triacs Silicon Bidirectional Thyristors (ON Semiconductor)
MAC97A8 - LOGIC LEVEL TRIAC (UTC)
MAC97A8 - TRIAC (JCET)
MAC97A8 - Triac (BLUE ROCKET ELECTRONICS)
MAC97A8 - Triac (INCHANGE)

Other Datasheets by HAOPIN MICROELECTRONICS

MAC97A6 - Sensitive Gate Triacs

Full PDF Text Transcription

Click to expand full text

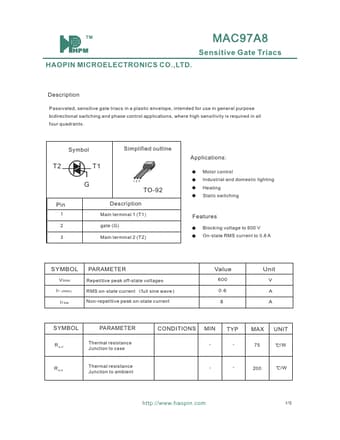

TM MAC97A8 HPM Sensitive Gate Triacs HAOPIN MICROELECTRONICS CO.,LTD. Description Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. Symbol Simplified outline T2 T1 G 123 TO-92 Pin Description 1 Main terminal 1 (T1) 2 gate (G) 3 Main terminal 2 (T2) Applications: Motor control Industrial and domestic lighting Heating Static switching Features Blocking voltage to 600 V On-state RMS current to 0.6 A SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages RMS on-state current full sine wave Non-repetitive peak on-state current Value 600 0.
