ADT6610

3-CH Constant current LED sink driver

ADT6610 Features

* 16SOP

* Constant output current range : 5mA to 100mA with three external resistors

* 3 channel constant current LED sink driver for RGB LED clusters

* Two wire only transmission interface - Clock re-generation to recover the clock duty cycle

* 8/12/16bit grayscale PWM

ADT6610 General Description

The ADT6610 is a 3-channel constant current LED driver that has a wide range of output currents. The ADT6610 controls LED brightness with a Pulse Width Modulation (PWM) scheme that gives the application the capability of displaying a billion colors in an RGB cluster. The maximum current is set by an.

ADT6610 Datasheet (327.35 KB)

ADT6610 Datasheet Preview — Preview of ADT6610 PDF

Datasheet Details

Part number:

ADT6610

Manufacturer:

ADtech

File Size:

327.35 KB

Description:

3-ch constant current led sink driver.

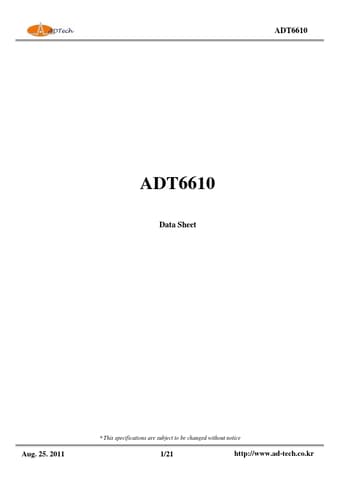

www.DataSheet.co.kr ADT6610 ADT6610 Data Sheet
* This specifications are subject to be changed without notice Aug. 25. 2011 1/21 http://www..
