ADT6780 - Thermally enhanced Low VFB Step-Down LED Driver (EN)

ADT6780 Description

Thermally enhanced Low VFB Step-Down LED Driver ADT6780 Thermally enhanced Low VFB Step-Down LED Driver General .
ADT6780 The ADT6780 is a thermally enhanced current mode step down LED driver.

ADT6780 Features

* Feedback reference voltage : 0.2V
* Current mode buck LED driver with 925kHz fixed frequency
* Input voltage range : 4.5V to 28V
* Continuous output current : 2A
* Up to 93% efficiency
* Integrated Power MOSFET switch : 80mΩ
* 10㎂ shutdown mo

ADT6780 Applications

* High power LED/IR-LED Lighting Automotive and Marine Lighting Architecture Lighting General Lighting Solutions www. DataSheet. net/ Typical Application Circuit C5 1 L1 BST SW 3 D1 VOUT C2 D2 VIN C1 2 VIN FB 5 U1 7 R1 EN EN COMP 6 C3 8 C4 SS GN

📥 Download Datasheet

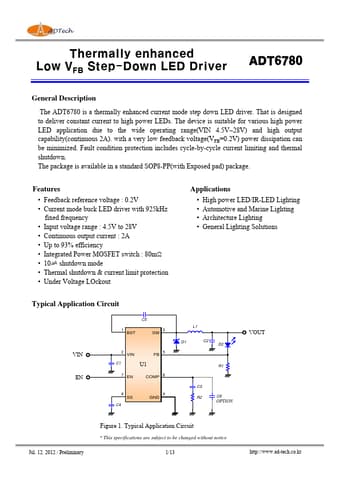

Preview of ADT6780 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT6780
Manufacturer
ADTECH
File Size
557.89 KB
Datasheet
ADT6780_ADTECH.pdf
Description
Thermally enhanced Low VFB Step-Down LED Driver (EN)
