ADT7351 - Step-Down Converter

ADT7351 Description

www.DataSheet.co.kr ADT7351 ADT7351 Data Sheet * This specifications are subject to be changed without notice Oct.31.2011 / Rev0.0 1/15 h.
The ADT7351 is a step-down converter with integrated switching MOSFET.

ADT7351 Features

* Current mode buck regulator with 925kHz fixed frequency
* Input voltage range : 4.5V to 28V
* Adjustable output range : 0.92V to 21V
* Continuous output current : 3A
* Up to 92% efficiency
* Integrated Power MOSFET switch : 80mΩ
* 10㎂ shutdow

ADT7351 Applications

* - Distributed Power Systems - Set-Top Boxes (STB) - Surveillance Camera Modules - Pre-regulator for Linear regulators - Cigarette Lighter Powered Devices - Battery Chargers Typical Application Circuit C5 1 BST SW 3 D1 L1 VOUT C2 R1 VIN C1 2 VIN FB 5 U1 7 R2 EN EN COMP 6 C3 8 C4 SS

📥 Download Datasheet

Preview of ADT7351 PDF

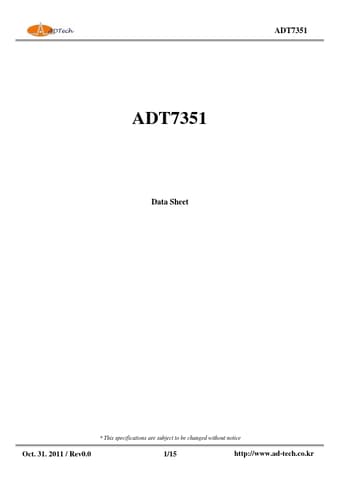

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT7351
Manufacturer
ADtech
File Size
1.02 MB
Datasheet
ADT7351_ADtech.pdf
Description
Step-Down Converter
