ADT7301

13-Bit/ 0.5C Accurate/ MicroPower Digital Temperature Sensor in 6-Lead SOT-23

Analog Devices

ADT7301 Features

* 13-Bit, ±0.5°C Accurate, MicroPower Digital Temperature Sensor in 6-Lead SOT-23 ADT7301 FUNCTIONAL BLOCK DIAGRAM BAND GAP TEMPERATURE SENSOR GND 13-BIT ANALOG/DIGITAL CONVERTER VDD 13-bit temperature-to-digital converter

* 40°C to +150°C operating temperature range ±0.5°C typical accuracy 0

ADT7301 General Description

The ADT7301 is a complete temperature monitoring system available in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C. The ADT7301 has a flexible serial interface that allows easy interfa.

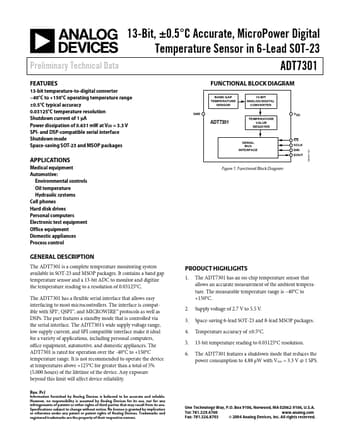

ADT7301 Datasheet (637.53 KB)

ADT7301 Datasheet Preview — Preview of ADT7301 PDF

Datasheet Details

Part number:

ADT7301

Manufacturer:

Analog Devices ↗

File Size:

637.53 KB

Description:

13-bit/ 0.5c accurate/ micropower digital temperature sensor in 6-lead sot-23.
