Datasheet Details
- Part number
- ADT7461
- Manufacturer
- ON Semiconductor ↗
- File Size
- 265.03 KB
- Datasheet
- ADT7461-ONSemiconductor.pdf
- Description
- Temperature Monitor
ADT7461 Description

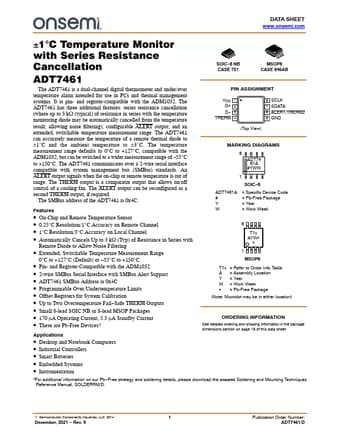

DATA SHEET www.onsemi.com +15C Temperature Monitor with Series Resistance Cancellation SOIC *8 NB CASE 751 MSOP8 CASE 846AB ADT7461 The .
Positive Supply, 3.
ADT7461 Features
* series resistance cancellation (where up to 3 kW (typical) of resistance in series with the temperature monitoring diode may be automatically cancelled from the temperature result, allowing noise filtering); configurable ALERT output; and an extended, switchable temperature measurement range. The A
ADT7461 Applications
* Desktop and Notebook Computers
* Industrial Controllers
* Smart Batteries
* Embedded Systems
* Instrumentation
PIN ASSIGNMENT
VDD 1 D+ 2 D
* 3
THERM 4
8 SCLK 7 SDATA 6 ALERT/THERM2 5 GND
(Top View)
MARKING DIAGRAMS
8
ADT74 61A
#YWW
1
SOIC
