ADT7411 Datasheet - Analog Devices

ADT7411 10-Bit Digital Temperature Sensor and 8-Channel ADC

The ADT74111 combines a 10-bit temperature-to-digital converter and a 10-bit 8-channel ADC in a 16-lead QSOP. This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The ADT7411 operates from a single 2.7 V to 5.5 V supp.

ADT7411 Features

* 10-bit temperature-to-digital converter 10-bit 8-channel ADC DC input bandwidth Input range: 0 V to 2.25 V and 0 V to VDD Temperature range:

* 40°C to +120°C Temperature sensor accuracy of ±0.5°C Supply range: 2.7 V to 5.5 V Power-down current :

ADT7411 Datasheet (547.72 KB)

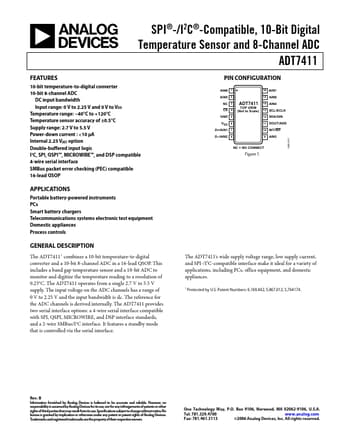

Preview of ADT7411 PDF
ADT7411 Datasheet Preview Page 2 ADT7411 Datasheet Preview Page 3

Datasheet Details

Part number:

ADT7411

Manufacturer:

Analog Devices ↗

File Size:

547.72 KB

Description:

10-bit digital temperature sensor and 8-channel adc.
