ADT7408

12-Bit Digital Temperature Sensor

ADT7408 Features

* 12-bit temperature-to-digital converter ±2°C accuracy Operation from

* 20°C to +125°C Operation from 3 V to 3.6 V 240 μA typical average supply current Selectable 1.5°C, 3°C, 6°C hysteresis SMBus-/I2C®-compatible interface Dual-purpose event pin: comparator or interrupt 8-lead LFCSP_VD, 3 mm

ADT7408 General Description

The ADT7408 is the first digital temperature sensor that complies with JEDEC standard JC-42.4 for the mobile platform memory module. The ADT7408 contains a band gap temperature sensor and a 12-bit ADC to monitor and digitize the temperature to a resolution of 0.0625°C. There is an open-drain EVENT# .

ADT7408 Datasheet (368.09 KB)

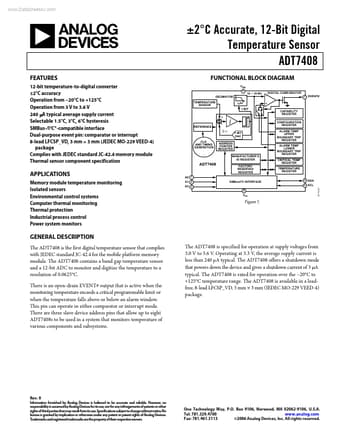

Preview of ADT7408 PDF

Datasheet Details

Part number:

ADT7408

Manufacturer:

Analog Devices ↗

File Size:

368.09 KB

Description:

12-bit digital temperature sensor.
