ADT7410

16-Bit Digital I2C Temperature Sensor

Analog Devices

ADT7410 Features

* High performance Temperature accuracy ±0.5°C from

* 40°C to +105°C (2.7 V to 3.6 V) ±0.4°C from

* 40°C to +105°C (3.0 V) 16-bit temperature resolution: 0.0078°C Fast first temperature conversion on power-up of 6 ms Easy implementation No temperature calibration/correction required by u

ADT7410 General Description

The ADT7410 is a high accuracy digital temperature sensor in a narrow SOIC package. It contains a band gap temperature reference and a 13-bit ADC to monitor and digitize the temperature to a 0.0625°C resolution. The ADC resolution, by default, is set to 13 bits (0.0625°C). This can be changed to 16 .

ADT7410 Datasheet (427.24 KB)

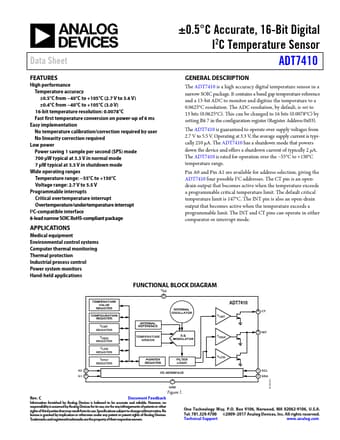

ADT7410 Datasheet Preview — Preview of ADT7410 PDF

Datasheet Details

Part number:

ADT7410

Manufacturer:

Analog Devices ↗

File Size:

427.24 KB

Description:

16-bit digital i2c temperature sensor.
