ADT7475 Datasheet - ON Semiconductor

ADT7475 Remote Thermal Monitor and Fan Controller

ADT7475 Remote Thermal Monitor and Fan Controller The ADT7475 controller is a thermal monitor and multiple PWM fan controller for noise-sensitive or power-sensitive applications requiring active system cooling. The ADT7475 can drive a fan using either a low or high frequency drive signal, monitor the temperature of up to two remote sensor diodes plus its own internal temperature, and measure and control the speed of up to four fans so that they operate at the lowest possible speed for minimum a.

ADT7475 Features

* Controls and Monitors Up to 4 Fans

* High and Low Frequency Fan Drive Signal

* 1 On-Chip and 2 Remote Temperature Sensors

* Extended

ADT7475-ONSemiconductor.pdf

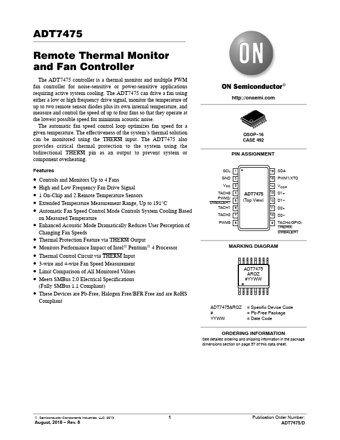

Preview of ADT7475 PDF
ADT7475 Datasheet Preview Page 2 ADT7475 Datasheet Preview Page 3

Datasheet Details

Part number:

ADT7475

Manufacturer:

ON Semiconductor ↗

File Size:

550.60 KB

Description:

Remote thermal monitor and fan controller.
