ADT7350 - step-down converter

ADT7350 Description

ADT7350 General .
The ADT7350 is a step-down converter with integrated switching MOSFET.

ADT7350 Features

* Current mode buck regulator with 1.4MHz fixed frequency
* Input voltage range : 4.5V to 24V
* Adjustable output range : 0.81V to 15V
* Max. output current : 1.2A
* Up to 92% Efficiency
* Internal Soft-Start Function
* Integrated Power MOSFET

ADT7350 Applications

* Distributed Power Systems Surveillance Camera module Navigation Infra-Red LED Drivers Typical Application Circuit CB 1 BST SW 6 L1 D1 C2 R1 VOUT U1 2 GND 5 VIN C1 VIN R2 3 FB EN 4 EN
* This specifications are subject to be changed without

📥 Download Datasheet

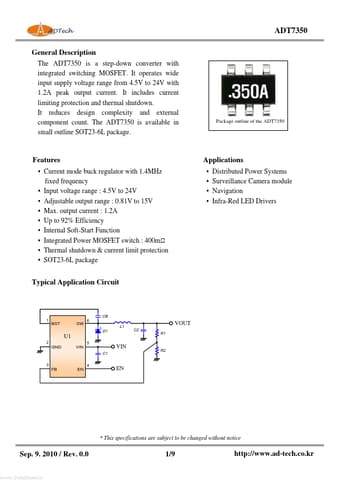

Preview of ADT7350 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT7350
Manufacturer
ADTech
File Size
354.97 KB
Datasheet
ADT7350_ADTech.pdf
Description
step-down converter
