ADT7110 - fixed frequency step-down converter

ADT7110 Description

ADT7110 General .
The ADT7110 is a fixed frequency step-down converter designed to drive Infrared LEDs in the CCD camera module application.

ADT7110 Features

* Input voltage range : 10.5V to 15V
* Current mode PWM controller with integrated compensation components
* 350mA output load current available
* Built-in chip enable/disable function
* Built-in current limit protection
* 500kHz fixed frequency intern

ADT7110 Applications

* Infrared LED driver for CCD camera
* Small outline SOT-26 package (2.9mm x 1.6mm body) Typical Application Circuit VOUT RSE RS VIN C2 VIN A11 GND RFB2 RFB1a L1 RFB1b C1 RFB1c RFB1d RFB1e RLED5 RLED6 RLED4 RLED3 RLED2 RLED1 RFB1f U1 EN EN FB PWM VFB
* This specifica

📥 Download Datasheet

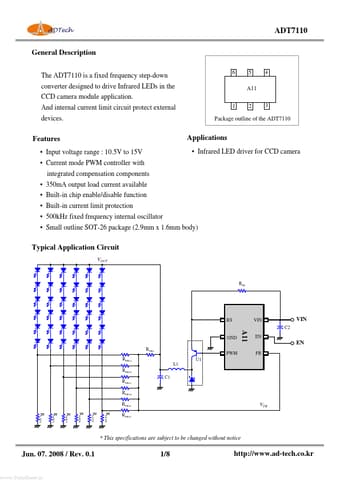

Preview of ADT7110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADT7110
Manufacturer
ADTech
File Size
150.90 KB
Datasheet
ADT7110_ADTech.pdf
Description
fixed frequency step-down converter
