ADT7310 Datasheet - Analog Devices

ADT7310 16-Bit Digital SPI Temperature Sensor

The ADT7310 is a high accuracy digital temperature sensor in a narrow SOIC package. It contains a band gap temperature reference and a 13-bit ADC to monitor and digitize the temperature to a 0.0625°C resolution. The ADC resolution, by default, is set to 13 bits (0.0625 °C). This can be changed to 16.

ADT7310 Features

* 13- or 16-bit user selectable temperature-to-digital converter Temperature accuracy ±0.5°C from

* 40°C to +105°C No temperature calibration/correction required by user Power saving 1 sample per second (SPS) mode Fast first conversion on power-up of 6 ms SPI-compatible interface Operating temp

ADT7310 Datasheet (610.97 KB)

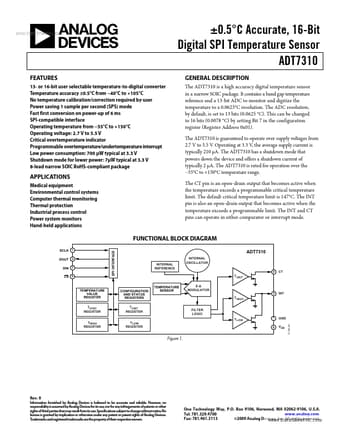

Preview of ADT7310 PDF

Datasheet Details

Part number:

ADT7310

Manufacturer:

Analog Devices ↗

File Size:

610.97 KB

Description:

16-bit digital spi temperature sensor.
