ADT7318 SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC

Analog Devices

Description

PRELIMINARY TECHNICAL DATA = SPI/I2C Compatible, 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC Preliminary Technical D.
The ADT7316/7317/7318 combines a 10-Bit Temperature-to-Digital Converter and a quad 12/10/8-Bit DAC respectively, in a 16-Lead QSOP package.

📥 Download Datasheet

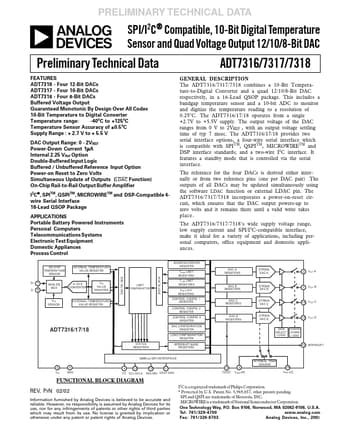

ADT7318 Datasheet Preview — Preview of ADT7318 PDF

Datasheet Specifications

Part number: ADT7318
Manufacturer: Analog Devices ↗
File Size: 340.37 KB
Datasheet: ADT7318_AnalogDevices.pdf
Description: SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC

Features

* ADT7316 - Four 12-Bit DACs ADT7317 - Four 10-Bit DACs ADT7318 - Four 8-Bit DACs Buffered Voltage Output Guaranteed Monotonic By Design Over All Codes 10-Bit Temperature to Digital Converter Temperature range: -40oC to +125oC Temperature Sensor Accuracy of ±0.5oC Supply Range : + 2.7 V to + 5.5 V DAC
