ADT7316

SPI/I2C Compatible/ 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC

ADT7316 Features

* ADT7316 - Four 12-Bit DACs ADT7317 - Four 10-Bit DACs ADT7318 - Four 8-Bit DACs Buffered Voltage Output Guaranteed Monotonic By Design Over All Codes 10-Bit Temperature to Digital Converter Temperature range: -40oC to +125oC Temperature Sensor Accuracy of ±0.5oC Supply Range : + 2.7 V to + 5.5 V DAC

ADT7316 General Description

The ADT7316/7317/7318 combines a 10-Bit Temperature-to-Digital Converter and a quad 12/10/8-Bit DAC respectively, in a 16-Lead QSOP package. This includes a bandgap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25oC. The ADT7316/17/18 opera.

ADT7316 Datasheet (340.37 KB)

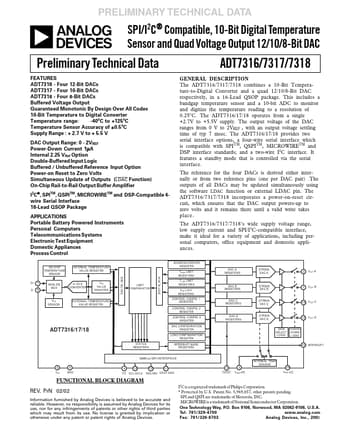

Preview of ADT7316 PDF

Datasheet Details

Part number:

ADT7316

Manufacturer:

Analog Devices ↗

File Size:

340.37 KB

Description:

Spi/i2c compatible/ 10-bit digital temperature sensor and quad voltage output 12/10/8-bit dac.
PRELIMINARY TECHNICAL DATA = SPI/I2C Compatible, 10-Bit Digital Temperature Sensor and Quad Voltage Output 12/10/8-Bit DAC Preliminary Technical D.
