MS3470 Datasheet - AEC

MS3470 CONNECTOR

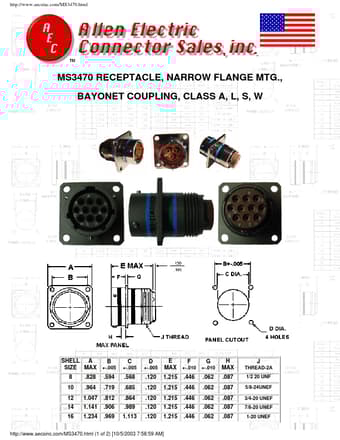

http://www.aecsinc.com/MS3470.html MS3470 RECEPTACLE, NARROW FLANGE MTG., BAYONET COUPLING, CLASS A, L, S, W SHELL A B SIZE MAX +-.005 8 10 12 14 16 .828 .964 1.047 1.141 1.234 .594 .719 .812 .906 .969 C +-.005 D +-.005 E F G MAX +-.010 +-.010 1.215 1.215 1.215 1.215 1.215 .446 .446 .446 .446 .446 .062 .062 .062 .062 .062 H MAX .087 .087 .087 .087 .087 J THREAD-2A 1/2 20 UNF 5/8-24UNEF 3/4-20 UNEF 7/8-20 UNEF 1-20 UNEF .568 .685 .864 .989 1.113 .120 .120 .120 .120 .120 http://www.aecsi.

MS3470 Datasheet (339.18 KB)

MS3470 Datasheet Preview — Preview of MS3470 PDF

Datasheet Details

Part number:

MS3470

Manufacturer:

AEC

File Size:

339.18 KB

Description:

Connector.
