MS3472 Wall Mounting Receptacle

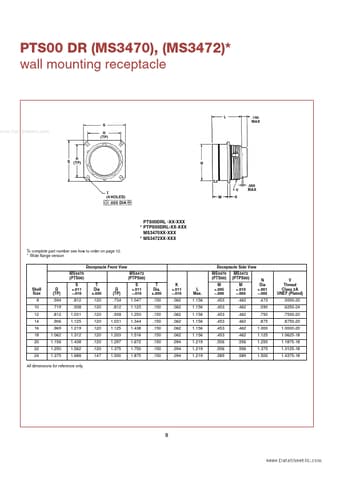

PTS00 DR (MS3470), (MS3472) wall mounting receptacle www.DataSheet4U.com PTS00DRL -XX-XXX PTPS00DRL-XX-XXX MS3470XX-XXX MS3472XX-XXX To complete part number see how to order on page 12. Wide flange version Receptacle Front View MS3470 (PTS00) Shell Size R (TP) S +.011 .010 T Dia ±.005 R (TP) MS3472 (PTPS00) S +.011 .010 T Dia. ±.005 K +.011 .010 L Max. Receptacle Side View MS3470 (PTS00) M +.005 .000 MS3472 (PTPS00) M +.010 .0.

MS3470_ETC.pdf

This datasheet PDF includes multiple part numbers: MS3472, MS3470. Please refer to the document for exact specifications by model.
MS3472 Datasheet Preview Page 2 MS3472 Datasheet Preview Page 3

Datasheet Details

Part number:

MS3472, MS3470

Manufacturer:

ETC

File Size:

202.84 KB

Description:

Wall mounting receptacle.

Note:

This datasheet PDF includes multiple part numbers: MS3472, MS3470.
Please refer to the document for exact specifications by model.
