AK2331

DAC Type 8-bit 4-channelElectronic Volume

AKM

AK2331 Features

* 8-bit 4 channels of built-in multiplication D/A converters

* Support for external one-path, internal three-path D/A converter reference voltages

* Built-in buffer amplifier with low distortion (-60dB typ.) and rail-to-rail operation

* Support fo r 3V control and 5V

AK2331 General Description

). The channel & address decoder decodes the data set by the control register and sets the corresponding D/A converter and reference voltage. The 8-bit Latch0 to Latch3 store the register data of the control register. The 8-bit DAC0 to DAC3 are 8-bit D/A converters set by the data latched in the pre.

AK2331 Datasheet (360.18 KB)

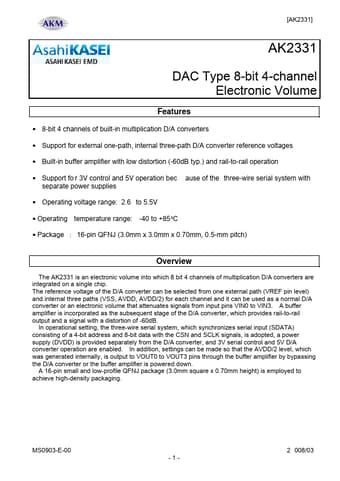

AK2331 Datasheet Preview — Preview of AK2331 PDF

Datasheet Details

Part number:

AK2331

Manufacturer:

AKM

File Size:

360.18 KB

Description:

Dac type 8-bit 4-channelelectronic volume.
