AK2360 - Scrambler IC

AKM

📥 Download Datasheet

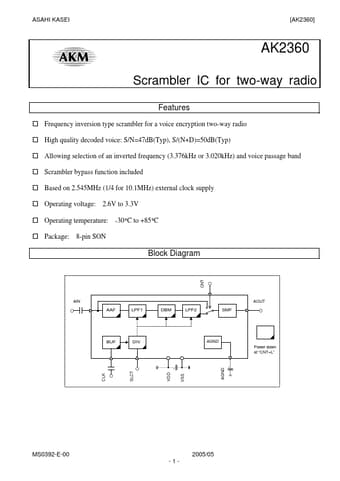

AK2360 Datasheet Preview — Preview of AK2360 PDF

Datasheet Details

Part number	AK2360
Manufacturer	AKM
File Size	184.86 KB
Description	Scrambler IC
Datasheet	AK2360-AKM.pdf

AK2360 Product details

Description

3 - Circuit Configuration 3 - Pin Functions 4 - Absolute Maximum Ratings 5 - Recommended Operating Conditions 5 - Digital DC Characteristics 5 - Clock Input Characteristics 5 - Current Consumption 6 - Analog Characteristics 6 - Recommended External Application Circuits 7 - Package 9 MS0392-E-00 -2- 2005/05 ASAHI KASEI [AK2360] General Description The AK2360 is a radio scrambler IC device suitable for half-duplex communication.As the scrambler method, a simple frequency inversion

Features

Frequency inversion type scrambler for a voice encryption two-way radio High quality decoded voice: S/N=47dB(Typ), S/(N+D)=50dB(Typ) Allowing selection of an inverted frequency (3.376kHz or 3.020kHz) and voice passage band Scrambler bypass function included Based on 2.545MHz (1/4 for 10.1MHz) external clock supply Operating voltage: 2.6V to 3.3V Operating temperature: Package: 8-pin SON -30°C to +85°C Block Diagram AIN CNT AOUT AAF LPF1 DBM LPF2 SMF BUF DIV AGND Power.
