AK2365 - dPMR Filterless IF LSI

Name: AK2365
SKU: AK2365-798648

AKM

📥 Download Datasheet

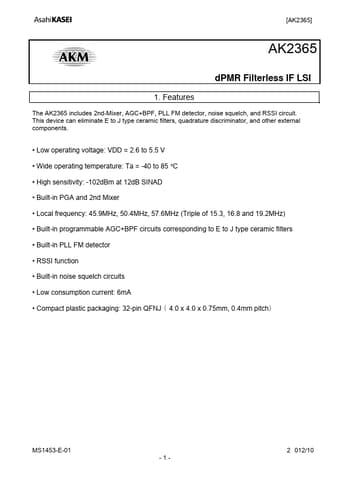

AK2365 Datasheet Preview — Preview of AK2365 PDF

Datasheet Details

Part number	AK2365
Manufacturer	AKM
File Size	489.47 KB
Description	dPMR Filterless IF LSI
Datasheet	AK2365-AKM.pdf

AK2365 Product details

Description

MIX AGC+BPF IFBUF Divider Limiter DISCRI LPF Noise AMP Noise Rectifier Comparator RSSI VIREF LDO Control Logic 2nd-mixer to convert the input signal down to 450kHz.

Features

The AK2365 includes 2nd-Mixer, AGC+BPF, PLL FM detector, noise squelch, and RSSI circuit. This device can eliminate E to J type ceramic filters, quadrature discriminator, and other external components.
Low operating voltage: VDD = 2.6 to 5.5 V.
Wide operating temperature: Ta = -40 to 85 °C.
High sensitivity: -102dBm at 12dB SINAD.
Built-in PGA and 2nd Mixer.
Local frequency: 45.9MHz, 50.4MHz, 57.6MHz (Triple of 15.3, 16.8 and 19.2MHz).
Buil.
